Introduction

When evaluating professional LED sports lighting, most people focus on illuminance, glare control, and energy efficiency. However, dust protection is another critical factor that directly affects long-term performance and service life.

For lighting fixtures installed in outdoor stadiums, football fields, tennis courts, and multi-purpose sports facilities, dust accumulation can reduce optical efficiency, restrict heat dissipation, accelerate lumen depreciation, and even damage electronic components.

Effective dust protection is therefore essential not only for achieving IP ratings, but also for ensuring years of reliable operation.

Why Must Professional LED Sports Lighting Meet IP6X Dust Protection?

Sports lighting operates in environments that are often much harsher than expected.

Outdoor stadiums are constantly exposed to construction dust, wind-blown sand, and seasonal storms. Even indoor arenas are not immune—air-conditioning systems, airborne fibers, and daily spectator activity continuously introduce fine particles into the environment.

If dust penetrates the fixture, it can trigger several problems:

• Dust-covered lenses reduce lighting performance.
• Blocked heat sinks increase operating temperature.
• Conductive dust may damage drivers and electronic circuits.

For professional sports broadcasting, even a slight reduction in illumination can affect lighting uniformity and television image quality.

That is why IP6X (complete dust protection) is considered the minimum requirement for professional LED sports lighting.

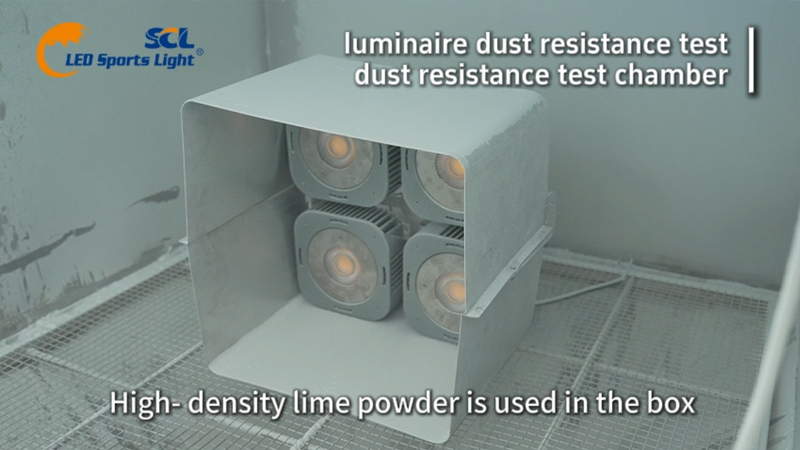

Inside the Dust Chamber: How IP6X Testing Works

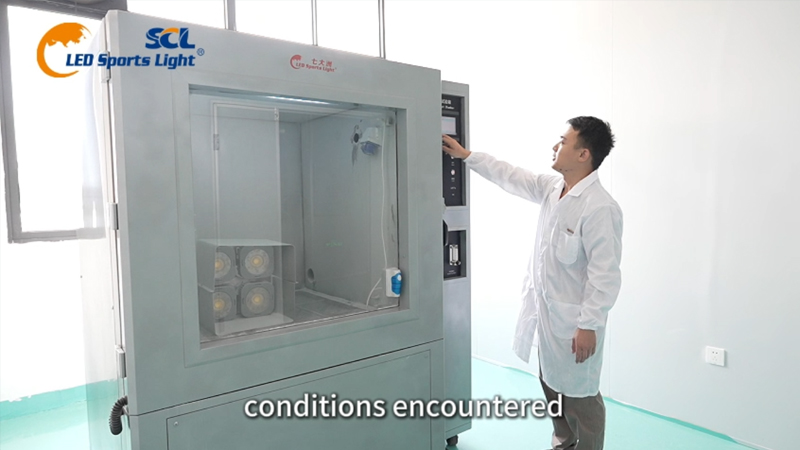

To verify long-term reliability under dusty conditions, professional laboratories perform comprehensive IP6X dustproof testing using large environmental dust chambers.

These tests simulate far more than ordinary household dust. They recreate challenging conditions such as construction dust, desert sandstorms, and industrial airborne particles.

The testing process includes three key stages:

Controlled Dust Environment

Standardized talcum powder is used to reproduce fine airborne dust with carefully controlled particle size and concentration.

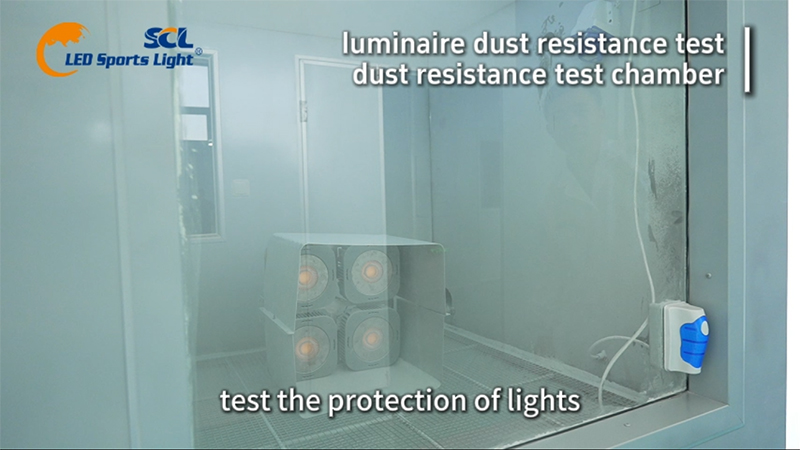

Continuous Air Circulation

An engineered airflow system keeps dust suspended throughout the chamber, allowing particles to continuously impact:

• Housing joints
• Heat sinks
• Cable entries
• Sealing interfaces

This ensures every potential entry point is fully evaluated.

Vacuum Pressure Simulation

For IP6X certification, negative pressure is created inside the fixture to simulate breathing effects caused by temperature changes between day and night.

This allows dust to seek even microscopic leakage paths, making the test much more demanding than conventional dust exposure.

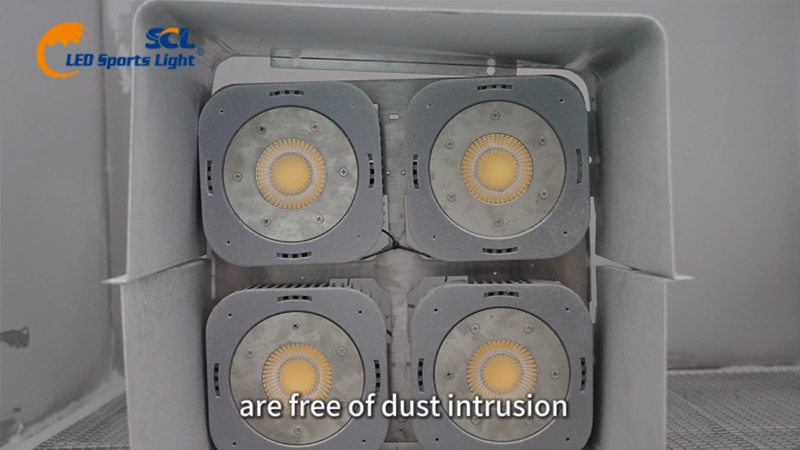

The Final Inspection: Zero Visible Dust Inside

Passing the dust chamber test is only part of the evaluation.

After testing, engineers completely disassemble the fixture and inspect every critical component, including:

• Optical chamber
• LED modules
• Heat sink
• Driver PCB
• Electrical connectors

The acceptance criterion for IP6X protection is simple: no visible dust is allowed inside any critical compartment.

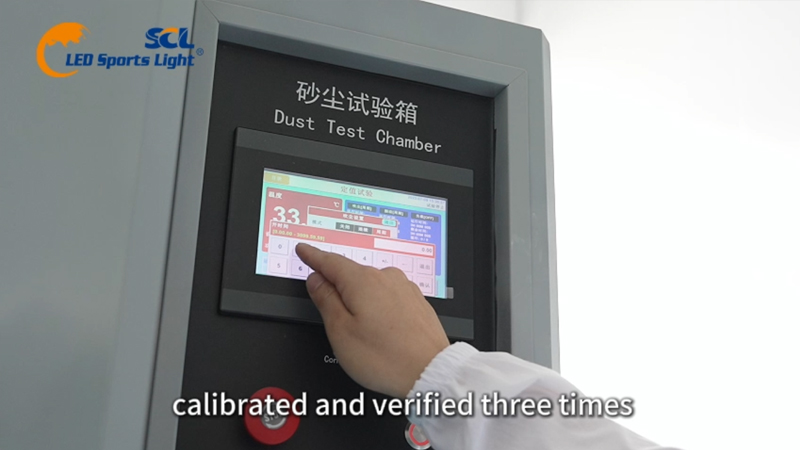

Every test result is also verified through equipment calibration, data review, and independent engineering confirmation to guarantee accuracy and repeatability.

Dust Protection Is an Engineering Philosophy

Excellent dust protection is never achieved by a single sealing ring. It is the result of an integrated engineering approach that combines intelligent design, precision manufacturing, and rigorous laboratory testing.

During product development, engineers optimize:

• Housing structure
• Joint design
• Industrial-grade sealed connectors
• Heat dissipation layout
• Die-casting precision
• Injection molding and sealing processes

Even the smallest manufacturing imperfection can become a future entry point for dust.

For professional LED sports lighting, long-term reliability comes from a complete sealing system—not simply an IP rating.

At SCL, every LED sports lighting fixture undergoes comprehensive IP6X dustproof verification before entering production, ensuring dependable performance in stadiums, training facilities, and harsh outdoor environments.

Frequently Asked Questions (FAQ)

Q1. What does IP6X mean for LED sports lighting?

EN: IP6X means the fixture is completely protected against dust ingress. No visible dust is allowed to enter the enclosure during standardized testing.

Q2. How does dust affect stadium lighting performance?

EN: Dust can reduce light output, block heat dissipation, increase LED operating temperature, and shorten the fixture's lifespan.

Q3. Why is IP6X important for outdoor sports lighting?

EN: Outdoor stadium lights are constantly exposed to dust, sand, and airborne particles. IP6X protection helps maintain lighting performance, reduce maintenance, and improve long-term reliability.
